AERIAL BUNDLED CABLE

Aerial Bundled Conductor

VERI ABC Cable is extensively used for combining single-core or multiple single-core cables. And their specifications are 0.6/1kv or 6.5/35kv. Then ABC cables are widely used to temporarily distribute street lighting and secondary pole service.

As a professional cable manufacturer, our cable products are all of the best quality. Such as low voltage, fiber optical, airport lighting, and solar cables.  And they have been exported to many countries every year—for example, Australia, Spain, Kenya, Rwanda, and Bangladesh. So we will deliver each order strictly according to the delivery time. And we ensure the smooth progress of the customer’s projects.

VERI Aerial Bundle Cable Types

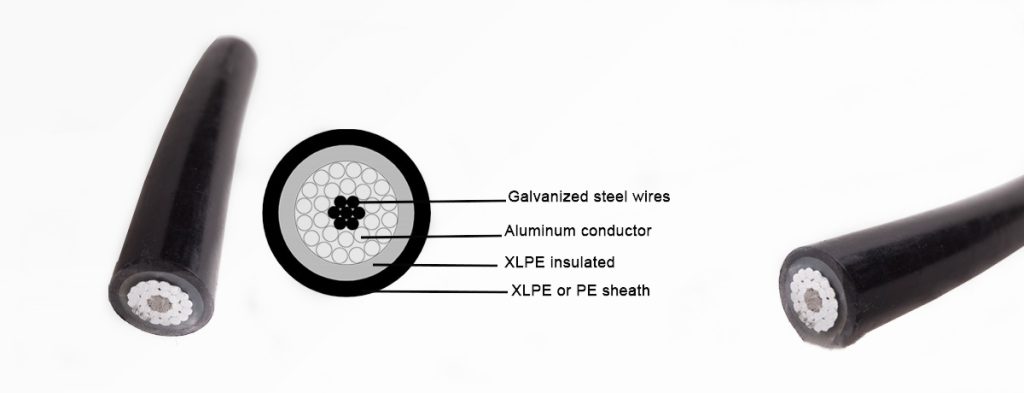

Aluminum XLPE Aerial Bundled Cable 4x35mm

1. Voltage: 0.6/1KV.
2. Conductor: Pure annealed copper or aluminum.
3. Insulation: XLPE/PE/PVC.
4. Cores: 1 C, 2C, 3C, 4C.
5. Nominal Cross-section: 10mm2 to 400mm2.
6. Standard: GB/T 14049-2008, IEC 60502.
7. Max. Operating Temperature: XLPE/PE: 90 °C, PVC: 70 °C.
8. Type: ABC Cable, JKTRYJ, JKLYJ,JKTRY, JKLY, JKLGYJ, JKLGY, JKLYJ/Q, JKLY/Q, JKLGYJ/Q, JKLGY/Q.
9. Packing: Wooden Drum or according to the customer requirement.
The cable can be of flame retardant, fire resistance, and other properties.

ABC – Aerial Bundled Cables, acc. BS (British Standard) 7870-5

number of cores x nominal cross-sectionmax. conductor-resistancemin. breaking load of conductor strandcurrent rating in the airouter diameterAL numbertotal weight
mm²Ohm/kmkNAca. mmkg/kmca. kg/km
1x 16 RM1,9102,5728,05574
1x 25 RM1,2004,01079,072106
1x 35 RM0,8685,513210,5102138
1x 50 RM0,6418,016511,8145182
1x 70 RM0,44310,720513,0203252
1x 95 RM0,32013,724015,4276333
1x 120 RM0,25318,629017,0348408
1x 150 RM0,20623,233419,0435502
1x 185 RM0,16428,738921,0537611
1x 240 RM0,12537,246724,0696801
2x 16 RM1,9102,57215,693147
2x 25 RM1,2004,010718,0145208
2x 35 RM0,8685,513220,0203277
2x 50 RM0,6418,016523,5290361
2x 70 RM0,44310,720525,4408505
2x 95 RM0,32013,724030,3551666
2x 150 RM0,20623,233438,08701004
4x 16 RM1,9102,57218,8186286
4x 25 RM1,2004,010721,2290430
4x 35 RM0,8685,513224,1406553
4x 50 RM0,6418,016527,8580746
4x 70 RM0,44310,720531,88121.009
4x 95 RM0,32013,724037,81.1021.332
4x 120 RM0,25318,629054,41.3921.632
4x 50 + 1x 25 RM0,641/1,2008,0/4,0165/10731,9653814
4x 50 + 1x 35 RM0,641/0,8688,5/5,5165/13231,9682845
4x 70 + 1x 25 RM0,443/1,20010,7/4,0205/10736,08851.105
4x 70 + 2x 25 RM0,443/1,20010,7/4,0205/10740,09561.217
4x 95 + 1x 25 RM0,320/1,20013,7/4,0240/10741,81.1751.438
4x 95 + 2x 25 RM0,320/1,20013,7/4,0240/10742,01.2471.544
4×120 + 1x 25 RM0,253/1,20018,6/4,0290/107591.4642.05

Application

Used to supply power, usually from a pole-mounted transformer, to the user’s service head where connection to the service entrance. To be used at 600V or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated or 90°C for cross-linked. Not suitable for direct burial.

STANDARDS&REFERENCES: IEC 60502 / AS / NZS 3599-1 standards

Inquiry Now

    Low Voltage Insulated Aerial Bundled ABC Cable

    Low Voltage 3×95+1×70+1×16 3×120+1×70+1×16 3×150+1×95+1×16 3×185+1×120+1×16 Aerial Bundled Conductor ABC Cables details:

    • Standard: NFC 33-209.
    • Phase/Lightning conductor: Stranded All Aluminum 1350; AAC.
    • Phase conductor Insulation: XLPE.
    • Neutral conductor: All aluminum alloy.
    • Neutral/Lightning conductor insultation: XLPE.
    • The Rated Voltage: 0.6/1KV,Test voltage : 4 kV AC

    Product Specification

    Nominal Cross Section
    Minimum Breaking Load
    Current Rating in Air
    Nominal Overall Diameter
    Total Weight
    Outer Diameter
    mm2
    Kn
    A
    mm
    kg/km
    mm
    2*16RM
    1.190
    2.5
    72
    147
    15.6
    2*25RM
    1.200
    4.0
    107
    208
    18
    2*35RM
    0.868
    5.5
    132
    277
    20
    2*50RM
    0.641
    8.0
    165
    361
    23.5
    4*16RM
    1.190
    2.5
    72
    286
    18.8
    4*25RM
    1.200
    4.0
    107
    430
    21.2
    4*35RM
    0.868
    5.5
    132
    553
    24.1
    4*50RM
    0.641
    8.0
    165
    746
    27.8
    4*70RM
    0.443
    10.7
    205
    1.009
    31.8
    4*95RM
    0.320
    13.7
    240
    1.332
    37.8
    4*120RM
    0.253
    18.6
    290
    1.632
    54.4
    4*35+1*35RM
    0.868/0.868
    5.5/5.5
    132/132
    694
    30
    4*50+1*25RM
    0.641/1.200
    8.0/4.0
    165/107
    814
    31.9
    4*50+1*35RM
    0.641/0.868
    8.5/5.5
    165/132
    845
    31.9
    4*70+1*25RM
    0.443/1.200
    10.7/4.0
    205/107
    1.105
    36
    4*70+2*35RM
    0.443/1.200
    10.7/4.0
    205/107
    1.217
    40
    4*70+1*25RM
    0.443/0.868
    10.7/5.5
    205/132
    1.15
    36.2
    4*70+2*25RM
    0.443/0.868
    10.7/5.5
    205/132
    1.289
    40.1
    4*95+1*25RM
    0.320/1.200
    13.7/4.0
    240/107
    1.438
    41.8
    4*95+1*35RM
    0.320/0.868
    13.7/5.5
    240/132
    1.467
    41.8
    4*95+2*25RM
    0.320/1.200
    13.7/4.0
    240/107
    1.544
    42
    Application
    Low Voltage Aerial Bundled Cables(ABC) are intended for use either as a service drop cable between a power pole and the service entrance or as a secondary distribution cable between poles. The use of this service drop or secondary distribution cables is limited to circuits, not exceeding 600 volts phase-to-phase or 480 volts phase-to-ground, to a normal temperature rating of the service conductor temperature of 90 °C.
    STANDARDS&REFERENCES: IEC60502/ NF C33-209/GB 12527-90 ASTM
    Inquiry Now

      Duplex / Triplex Service Drop Wire Aluminum Conductor

      Duplex Service Drop Wire, its main composition is 1350-H19 aluminum with phase conductors concentrically twisted and PVC or XLPE for insulation. The neutral core is made of concentrically twisted AAC, ACSR, or 6201 aluminum alloy. Mainly used for 120V overhead service applications. Such as street lighting, outdoor lighting, and building temporary services. The voltage between the phases is 600V and below. The conductor temperature of PVC insulated conductors does not exceed 75 °C, and the conductor temperature of XLPE insulated conductors does not exceed 90 °C.

      DUPLEX SERVICE DROP CABLE phase conductors are concentrically stranded according to ASTM B 231. Covered with weather-resistant black polyethylene compound. Neutral conductors are concentrically stranded ACSR according to ASTM B 232.

      Cable Parameter Specifications

      Conductors
      Type

      bare neutral messenger

      Phase
      conductor

      AAC

      ACSR

      Duplex service drop
      ABC

      Pekingese,Collie,

      Dachshund, Spaniel,

      Doberman, Malemute

      Setter,Shepherd,Eskimo,
      Terrier,Chow,Bull

      AAC

      Triplex service drop
      ABC

      Haiotis,Patella,Fusus,

      Oyster,Clam,Murex,

      Purpura,Nassa,
      Melita,Portunus,

      Nannynose

      Paludina,Voluta,Whelk,

      Periwinkle,
      Conch,Neritina,

      Cenia,Runcina,

      Triton,
      Cherrystone,Mursia,Razor,

      Zuzara,
      Limpet,Scallop,Strombus,

      Cockle,
      Janthina,Ranella,

      Aega,Cavolinia,Clio,

      Sanddollar,Cuttlefish,

      Cerapus, Cowry

      Quadruplex service drop
      ABC

      Cllydesdate,Pinto,

      Mustang,
      Criollo,Percheron,Hanoverian,
      Olderburg,Lippizaner

      Morochuca,Chola,Morgan,Hackney,
      Palomino,Costena,Grullo,Appaloosa,
      Bronco

      Code

      word

      AWG or kcmil

      Bare Neutral Messenger

      Phase Conductor

      Weight

      kg/km

      ACSR

      Rated Strength

      lbs.

      AAC

      Insul.

      Thick.

      mm

      No.

      Dia.

      mm

      No.

      Dia.

      mm

      No.

      Dia.

      mm

      Shepherd

      1*6AWG+1*6AWG

      1

      1.68

      6

      1.68

      1190

      7

      1.56

      1.14

      113

      Applications
      Primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary construction service. To be used at voltage of 600V phase-to-phase or less and at conductor temperatures not to exceed 75℃ for polyethylene insulated conductors or 90℃ for crosslinked polyethylene(XLPE) insulated conductors.

      Service drop cable meets or exceeds the following specifications:

      • ASTM B-230 Aluminum Wire,1350-H19 for Electrical Purposes.
      • ASTM B-231 Aluminum Conductors, Concentric-Lay-Stranded.
      • ASTM B-232 Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced(ACSR)
      • ASTM B-399 Concentric-Lay-Stranded 6201-T81 Conductors
      • ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
