Electric Control Cable

Control cable

VERI Cable has many types of control cables. There are low voltage PVC/XLPE insulation Control Cable, Instrument Cable, Galvanized Steel Wire Armored Control Cables, Flexible Cables, Control Cables with Screen/Shield, 0.6/1kV Paired or Triplex Instrument Cables, 0.6/1kV Paired or Triplex Armored Instrument Cable, etc. ZMS cable company as a professional control cable supplier support customizing the different types of control cables to meet all customer needs. We specialize in providing excellent overhead lines for transmission, distribution, and power network industries. Here at Veri Cable, you can get what you want.

Inquiry Now

Types by Structure

verious types of Copper Tape Screened Control Cable

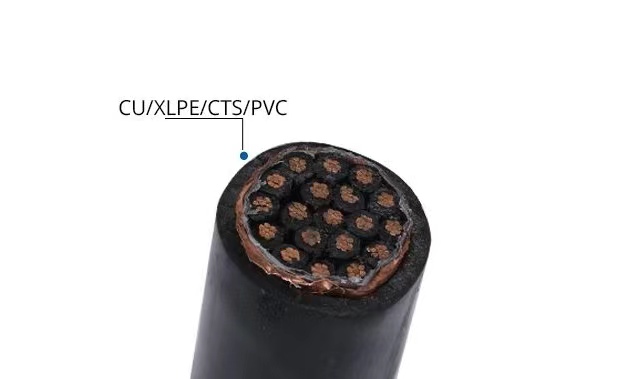

Copper Tape Screened Control Cable

Conductor: Solid or Stranded Copper
Insulation: PVC/PVC(XLPE)
Screen: Copper tape Screen
Sheath: PVC
Rated voltages: 450/750V
Max. Continuous working temp of conductor:70
Upon short circuit (Max. Duration time 5s) the Max.
The temperature of the conductor not higher than160°C;
The ambient temperature of installation not less than 0°C.
Standard: IEC 60227, IEC60228, AS/NZS 5000.2
Standard: GB9330

Inquiry Now

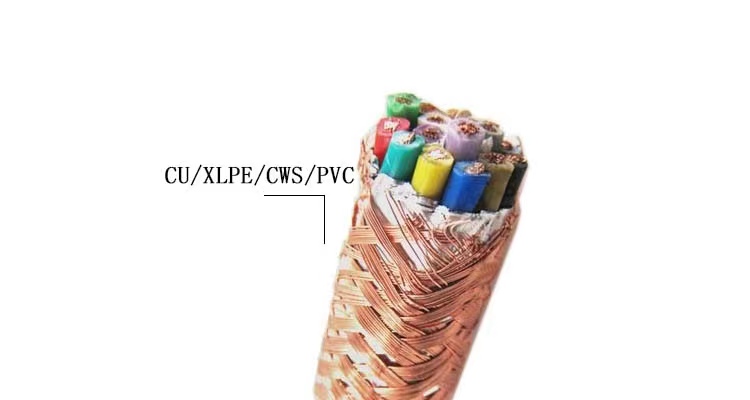

Copper Braid Screen Control Cable

Rated voltage 300/500V. Flexible cable
Standard:BS50525-2-11
Conductor: Stranded Copper or Stranded Tinned Copper class5
Insulation: PVC
Sheathing: PVC
Screen: plain copper wire or tinned copper wire braid
Temperature rating: from 0ºC to +70ºC.
Standard: IEC 60227, IEC60228, AS/NZS 5000.2
Standard: GB9330

Inquiry Now
armored control cable types

1000V Armored Control Cable

Rated Temperature: 90oC
Rated Voltage: 600/1000V
Reference Standard: GB/T12706, IEC60502
Model: YJV22
Shaped stranded copper conductors
Insulated with cross-link polyethylene compound
PVC bedded
Galvanized steel tape armored
Flame retardant PVC sheathed overall

Inquiry Now

Instrument Armored Control Cable

Construction
Conductor: Annealed or tinned copper
Pairing: Two or three insulated conductors uniformly twisted together with a lay not exceeding 100 mm
Binder Tape: PETP transparent tape
Standard
IEC 60502, BS 5308, GB 9330

Inquiry Now

Enterprise Basic Situation of VERI Cable

Veri Cable can offer the proper solution for uncountable applications. Our cable products are widely used in the ranges of the national grid, urban/railway power transportation, substations, solar power plants, etc.  With a strong presence in the international market, we export submarine cable, coaxial cable, special cable, fiber optical, and overhead cable to many countries every year.

The unremitting pursuit of excellence, innovation, and competitiveness is our belief. Our cable technical team has many experienced engineers, who can accommodate any custom project need. In order to ensure the quality of products, our cable technical team has been producing each product in accordance with strict standards. In addition, we have always adopted systematic quality inspection, whether it is the selection of the product supply chain or the various inspections before the cable is sold, we will strictly control it.

Veri Cable offers a wide variety of power cables, in more than 100 series, based on trends and personal preferences. In order to make sure the quality of the cables, we insist on testing our products And to provide customers with excellent control cable prices once in a while. We welcome customized designs and sizes. We will try our best to satisfy your unique requirements.

Excellent Service of VERI Cable

Export Experience

As a professional cable manufacturer, our cable products have been exported to many countries in the past 30 years, including the USA, Canada, Spain, UK, Germany, France, Russia, Greece, Saudi Arabia, etc. In these countries, our cable products are very popular with customers. And every year, because of our good quality and service, we would receive much good feedback from our customers.

Customized Cable Service

Our range of custom services includes design, size, and surface color. Many popular colors are also available for you to choose. We also specialize in over-sheathing, for example, we can make custom Polyethylene (PE) and Polyurethane (PUR) according to your requirements. We can provide solutions based on your ideas. Please contact us to give us your idea.

Strict Quality Inspection Standards

Veri Cable offers a wide variety of power cables based on trends and personal preferences. And we provide all kinds of power cables, more than 100 series. Then, to ensure the quality of the cables, we insist on testing our products once in a while.
