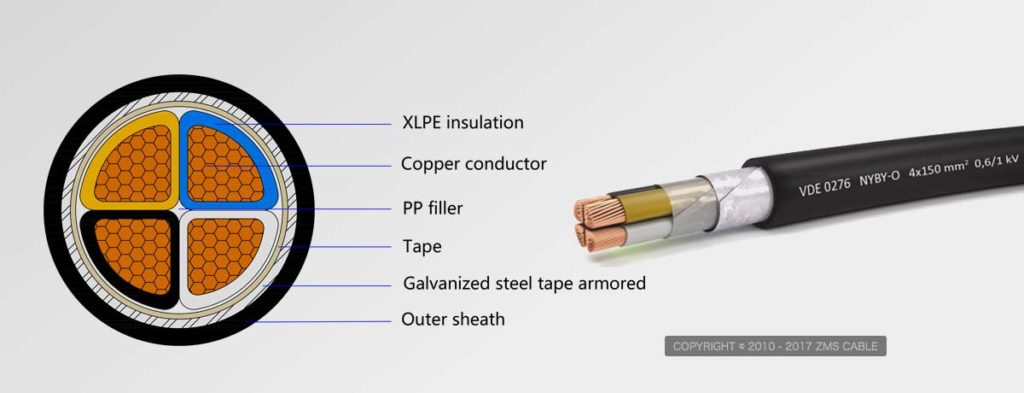

XLPE PVC Insulated Cable
VERI XLPE PVC Insulated Power Cable has a variety of insulation materials, that are suitable for different needs and have different purposes. Its insulation materials are polyethylene(PE insulation), cross-linked polyethylene(XLPE insulation), polyvinyl chloride(PVC insulation), rubber insulation(ERP insulation), etc. Insulated cables made of different insulation materials are subject to strict quality system testing. Only cable products that meet the standards can be sold from the Veri factory.
The function of the cable insulation layer is to use a non-conductive substance to isolate or wrap the charged body to prevent electric shock and provide a safety measure for protection.
More Types of XLPE PVC Insulated Cables
Also known as Cross-linked Polyethylene, XLPE Wire is a very good insulation in terms of electrical properties. Single core XLPE insulated power cable, also called XLPE insulated wire, is a new type of environmentally friendly product with high-temperature resistance and environmental resistance. It is made of thermosetting plastic. The electrical properties of XLPE insulated electric power cables produced by Veri are almost as good as those of polyethylene, and the long-term working temperature is relatively higher than that of polyethylene. At the same time, the mechanical properties are better than PE, and the aging resistance is better. Often used in places with high environmental resistance requirements.
Concentric XLPE Insulated Cable
XLPE concentric cables manufactured by Veri are often used as energy supply cables. It is most common in power distribution, panel, and street lighting.
Conductor: Aluminum / Copper Conductor
Insulation: XLPE
Core: Single / Two / Three / Four core
Cable Inner Sheath: PVC
Concentric Conductor Layer: Copper / Aluminum
Cable Tape: Non-absorbent Material or OEM
Cable Outer Sheath: XLPE / PVC / PE
Aluminum Core XLPE Insulated Cable
VERI Cable Manufacturer is a specialized supplier of medium and high-voltage underground power cables. Our standard MV underground transmission line composition includes single and three-core cables with copper or aluminum conductors.
Conductor: Aluminum / Copper Conductor
Insulation Screen: Semi-conductive XLPE
Core: Single / Three core
Conductor Screen: XLPE
Cable Tape: Water Swellable Semi-conductive Tape
Cable Outer Sheath: XLPE / PVC / PE
Good quality PVC cable is a common product in the wire and cable industry. Its product features are good physical and mechanical properties, good processing performance, low cost, and low price. However, it contains halogens, and the maximum amount of sheath is used. VERI power cables with insulation of cross-linked polyethylene (PVC) are designed for the distribution and supply of consumers with a nominal voltage of 0.6/1 kV
PVC Sheathed Screening Power Cable
Shielded flexible cables are part of our extensive inventory of control cables. Its flexibility can be found in many industries such as manufacturing, construction, power, and distribution.
Conductor: Copper Conductor
Cable Insulation: PVC
Core: Single / Medium core
Cable Inner Sheath: PVC
Screen: Copper (Plastic) Or Aluminum (Plastic) Composite Tape, Copper Wire Braided
Cable Outer Sheath: PVC
Copper Core PVC Insulated Control Cable
Industrial applications of VERI shielded flexible control cables include communication, computer, instrumentation, audio, control, and data transmission. It is suitable for monitoring electrical equipment, control circuits, and outdoor, dry, or wet cable rack installations.
Conductor: Copper Conductor
Insulation: PVC
Core: Single / Medium Core
Cable Outer Sheath: PVC
Types: H05VV-F / H07VK / H07RNF
Rubber has been used as cable insulation and sheathing material long before other insulation such as PVC and PE can be commonly applied. The cable rubber insulation layer and sheath are often made of natural rubber, styrene-butadiene rubber, ethylene-propylene rubber, etc. In addition to satisfying insulation properties and physical and mechanical properties, it also requires aging resistance and abrasion resistance. Some products require oil resistance and flame retardant.
Rubber Insulated Flexible Cable
Super flexible rubber insulated wire can be fixedly laid in various environments, such as indoor/outdoor, overhead, cable duct, or tunnel. It is mainly used for transmission and distribution line works with a rated voltage of 450/750V or below. It is widely used for external small electrical equipment, agricultural electrification, building elevators, and gantries.
Model: H07RN-F YC / YCW
Voltage: 300 / 500V, 450 / 750V
Conductor: Copper
Insulation: Rubber
Sheath: Natural Rubber / Chloroprene Rubber
Polyethylene is suitable for both wire insulation and final cable jacketing, often used for wire or cable insulation, data wire insulation material, with low dielectric constant, suitable for data wire, communication wire, and various computer peripheral wire core wire insulation. It has excellent electrical properties and has all the advantages of the above PVC. PE wire is approximately 28% lighter than PVC wire.
PE Insulated —Solar Power Cable
Polyethylene (PE) is a very good insulating material. It has excellent dielectric properties, high dielectric strength, low dielectric constant, and low dissipation factor at all frequencies. Our polyethylene insulated cables are suitable for applications including telephone and high-speed transmission, high-frequency signal and control cables, low, medium, and high-voltage power cables, overhead lines, and service cables.
Model: Solar power cable
Conductor: Flexible stranded tinned copper conductor
Insulation: PE / XLPE
Sheath: XLPE / PVC / Customized
Applications of XLPE PVC Insulated Cables
Residential and Commercial Wiring
- PVC insulation offers flexibility and flame resistance, ensuring safety in confined spaces.
- XLPE cables can handle higher temperatures, making them ideal for heavy-load applications.
Marine and Offshore Applications
- XLPE insulation resists saltwater corrosion and high mechanical stress.
- PVC sheathing provides excellent protection against moisture and UV exposure.
Renewable Energy Systems
- Solar Power: Used for photovoltaic (PV) systems to connect solar panels to inverters. XLPE insulation is highly resistant to UV radiation and temperature extremes, making it ideal for outdoor use.
- Wind Power: Installed in turbines for power generation and grid connection. XLPE’s superior dielectric properties ensure reliable performance in high-voltage transmission.
Fire-Resistant Applications
- PVC insulation is flame-retardant, while XLPE can maintain functionality at high temperatures.
- These cables ensure power continuity in case of a fire emergency.
FAQ
One of the most important things to consider before choosing a more suitable cable is the application environment, which is largely absolute whether you need to use XLPE or PVC jacketing.
Feature | XLPE Insulated Cable | PVC Insulated Cable |
Operating Temperature | Up to 90°C (normal), 250°C (short circuit) | Up to 70°C-90°C |
Voltage Rating | Medium to High Voltage | Suitable for low pressure mostly |
Electrical Properties | Superior dielectric strength | Moderate |
Flexibility | Less flexible | More flexible |
Fire Safety | Can be LSZH; minimal toxic fumes | Standard PVC emits toxic gases when burned |
Durability | High resistance to mechanical damage | Moderate |
UV Resistance | Excellent | Can degrade without UV stabilization |
Typically, the minimum order quantity for all cables supported by VERI Cables is 500 meters, due to the fact that the weight of some cables, even in small quantities, can be very high and can lead to disturbances in transportation costs. We therefore recommend that you choose to buy locally for cable orders of less than 500 meters. You can still send us your high voltage cable inquiry.
On VERI Cable's website, you can contact us through inquiry box, email (sales@vericable.com), WhatsApp (+86 17303836349). We also support video conference with our customers and welcome them to visit us.
If you don’t know how to choose the products you need, or don’t find the cable type and size you need on this page, don’t worry. Contact us and send us your requirements, we can help you choose the right cable. You can provide us with the following information: cable voltage, conductor material, insulation and sheath material, shield type, armor type, etc. or you can provide us with cable installation environment, application requirements, etc. We will serve you wholeheartedly. VERI Cable Supplier has a number of quality certification: ISO 9000, ISO 9001, ISO14000, ISO14001, ISO18000, CE, IEC, BS, NFC, ASTM, DIN, etc.
Transportation with Professional Service
VERI Cable has multiple ways to protect your cables, with sturdy and professional shipping packaging and comprehensive insurance. Before shipping, our cables are packaged in wooden reels and corrugated box coils. During transportation, to protect the cable ends from moisture, we seal them with BOPP self-adhesive tape and non-hygroscopic.
If there are quality problems such as damaged packaging and product surface damage on the spot when the goods are received, if the goods are confirmed to be true, the goods do not match the order, and the quality problems found by the customer during the installation, laying and use process are confirmed to be the quality problems of the product itself, If the delivery is not in accordance with the contract requirements, please contact our company directly.
